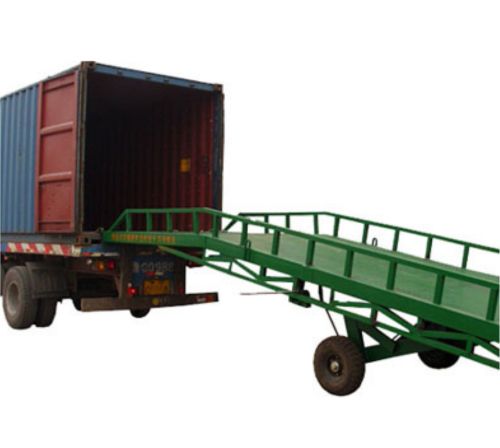

Mobile Dock Leveler

A Mobile Dock Leveler is a versatile loading equipment designed to bridge the gap between the dock and vehicle for efficient material handling where a fixed dock is unavailable. It provides a safe, movable platform to load and unload goods from trucks, containers, or trailers. Unlike stationary dock levelers, mobile dock levelers are portable and can be moved to different locations using tow bars or forklift attachments, making them ideal for warehouses, logistics hubs, and temporary loading areas.

Typically constructed from heavy-duty steel, mobile dock levelers feature robust wheels for smooth mobility and a hydraulic or mechanical lifting mechanism to adjust the height. They come with side guards, anti-slip platforms, and locking systems for enhanced safety and stability during operation. With adjustable height ranges, they cater to various vehicle bed levels, allowing seamless loading and unloading of forklifts and pallet trucks.

Mobile dock levelers significantly improve operational efficiency and reduce the risk of product damage or worker injury. Their portability makes them a cost-effective solution for businesses that require flexibility in loading operations, especially in rental spaces or changing logistics environments.

Mobile Dock Leveler Specification

Specification Details
Model MDL Series
Capacity 6000 kg to 10000 kg
Platform Size (L x W) 2700 mm x 2135 mm (customizable)
Dock Height Range 1100 mm to 1600 mm
Lip Length 400 mm to 500 mm
Lip Type Foldable / Hinged
Power Source Manual or Electro-Hydraulic
Material MS with anti-skid checkered plate
Mobility Mounted on wheels with towing hook
Control System Push-button / Lever-operated
Finish Powder coated / Painted
