Staxx scissor pallet jack can be used for handling or working platforms. Its compact body design, fast lift pump function, can save time and improve labor efficiency Our scissor lift pallet truck widely used in factories, workshops, warehouses, supermarkets, etc. lifting range can be adapted to different handling heights, reducing the trouble of stopping the cargo.

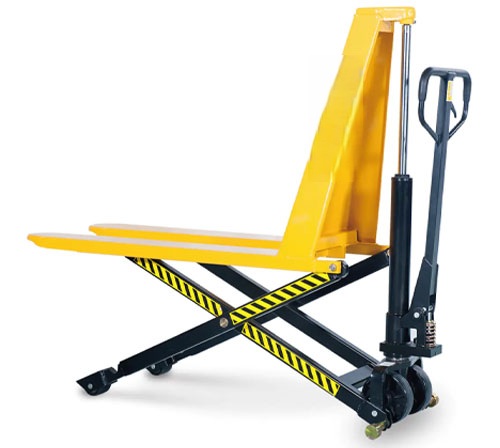

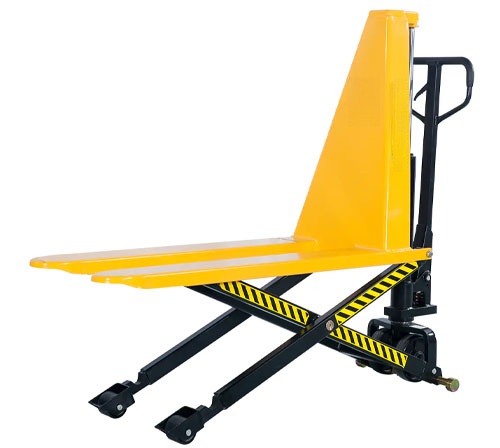

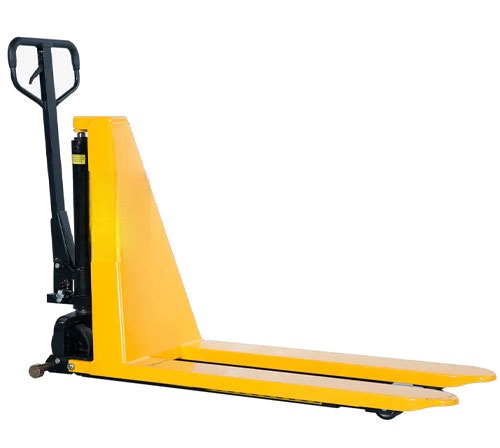

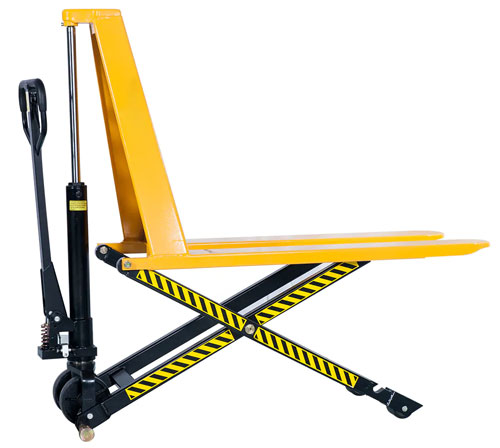

The HLS Manual Scissor Lift Pallet Truck is a versatile material handling solution designed for lifting and transporting pallets with ease and efficiency. It combines the features of a pallet truck and a lift table, making it ideal for applications that require ergonomic working heights. The truck is equipped with a robust hydraulic system, offering smooth lifting up to 800 mm.
Its high-strength steel construction ensures durability and stability, while the overload protection valve enhances safety. With a compact design and easy maneuverability, the HLS Scissor Lift Pallet Truck is perfect for warehouses, assembly lines, and loading/unloading operations.
Capacity: 1000/1500kgs
Lifting height : 85-800mm
Fork width: 540/680mm
Fork length : 1150
Wheel :Nylon/PU wheels
MODEL | HLS1000N | HLS1500N | SHLS1000N | SHLS1500N |
---|---|---|---|---|
Capacity (kg) | 1000 | 1500 | 1000 | 1500 |
Min. fork height (H mm) | 85 | 85 | 85 | 85 |
Max. fork height (h mm) | 800 | 800 | 800 | 800 |
Size of fork (S mm) | 160x50 | 160x50 | 160x50 | 160x50 |
Fork overall width (W mm) | 540/680 | 540/680 | 540/680 | 540/680 |
Fork length (L mm) | 1150 | 1150 | 1150 | 1150 |
Size of load wheel (Φd mm) | 80x70 | 80x70 | 80x70 | 80x70 |
Load wheel | Nylon/PU | Nylon/PU | Nylon | Nylon |
Size of steering wheel (ΦD mm) | 180x50 | 180x50 | 180x50 | 180x50 |
Steering wheel | Nylon/PU/Rubber | Nylon/PU/Rubber | Nylon | Nylon |
Pump | Quick Lift | Quick Lift | Quick Lift | Quick Lift |
Weight (kg) | 113/116 | 125/130 | 110/113 | 123/128 |
Material | NORMAL | NORMAL | STAINLESS | STAINLESS |
