The STAXX 2.5T/3.0T stainless steel pallet truck is a robust and efficient industrial tool designed for transporting heavy loads in environments that require high standards of hygiene and corrosion resistance, such as food processing, pharmaceuticals, and chemical industries.

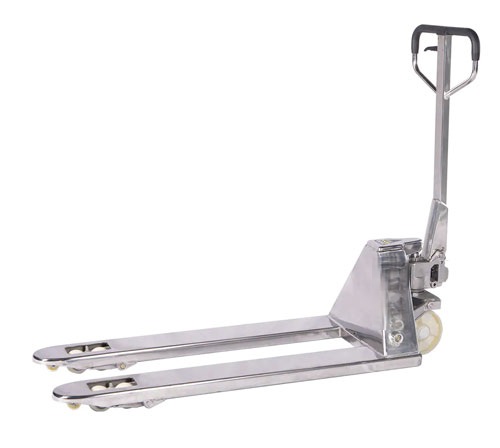

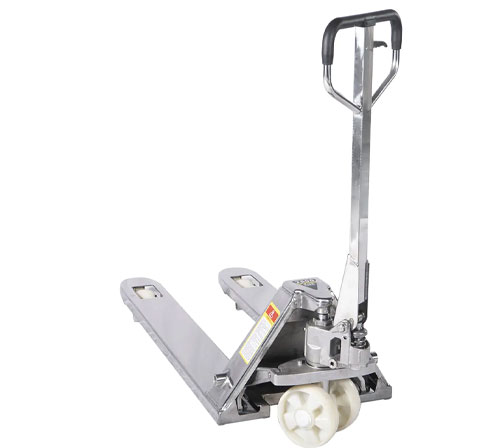

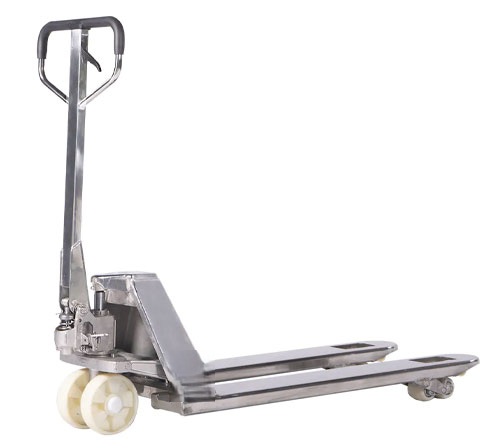

The WH‑25/30S‑H Stainless Steel Pallet Truck is a heavy-duty, corrosion‑resistant hand pallet jack designed for stringent hygiene environments like food processing, pharmaceuticals, dairies, and chemical facilities. It handles 2 500 kg or 3 000 kg loads and features fully 304 (or optionally 316) stainless‑steel construction—including hydraulic pump, fork frame, handle, and rollers—making it impervious to acid, alkali, moisture, and frequent washdowns.
Fork dimensions are 550 × 1150 mm or 685 × 1220 mm with a 75–85 mm lowered height and 200 mm lift . Equipped with nylon (or PU) steering and tandem load wheels, a pressure‑relief and overload valve protects the pump from damage.
Capacity: 2500/3000kgs
Fork width: 550/685mm
Fork length: 1150/1220mm
Wheel : Nylon wheels
Material:Stainless Steel material 304/316 available
| MODEL | WH-25S-H | WH-30S-H |
|---|---|---|
| Capacity (kg) | 2500 | 3000 |
| Pump type | Stainless steel Pump | |
| Wheel type | Nylon | |
| Size of steering wheel (ΦD mm) | 180x50 | 180x50 |
| Size of load wheel (single) (Φd mm) | 74x93 | 74x93 |
| Size of load wheel (tandem) (Φd mm) | 80x70 | 80x70 |
| Min. fork height (H1 mm) | 85/75 | 85/75 |
| Max. fork height (H mm) | 195/185 | 195/185 |
| Lifting height (h mm) | 115 | 115 |
| Individual Fork Width (S mm) | 160 | 160 |
| Fork overall width (W mm) | 550/685 | 550/685 |
| Fork length (L mm) | 1150/1220 | 1150/1220 |
| Weight (kg) | 70–80 | 70–80 |
